Product Details:
Product Name:	Endless Wire Rope Sling 16mm x 3m WLL 5.2T Choker / 13.2T Basket
Brand:	LKS
Wire Rope Diameter:	16mm steel wire rope
Nominal Length:	3m circumference length measured around the sling centerline
Rated WLL:	5.2T in choker hitch and 13.2T in basket hitch, with 6.6T reference straight use
Structure:	Endless loop wire rope sling with continuous rope body, pressed sleeves, splice area and metal tag
Payment & Shipping Terms:
Payment Terms:	T/T, bank transfer or negotiated terms for bulk and project orders
Sample Order:	Available for dimension checking, structure confirmation and project approval
Lead Time:	Based on rope diameter, circumference length, quantity, tag requirement, proof test option and packing request
Packing Method:	Carton, pallet, wooden case, steel frame or customized export packing
Shipping Method:	Sea freight, air freight, express delivery or buyer-appointed freight forwarder
Documents:	Commercial invoice, packing list, product photos, inspection record and optional proof test report

Detail Information
Rated WLL by Hitch	6.6T straight reference use, 5.2T choker hitch and 13.2T basket hitch	Reference Breaking Load	Approx. 18.3T / 179.8kN rope minimum breaking force calculated from single-leg reference WLL 3.3T, KT 0.9 and safety factor 5
Wire Rope Diameter	16mm steel wire rope	Nominal Circumference Length	3m measured along the centerline of the endless loop
Wire Rope Construction	6x36 IWRC 1960 N/mm², or customized construction on request	Surface Finish	Galvanized steel wire rope, bright steel wire rope or stainless steel wire rope available
Structure Type	Ferrule-secured endless loop sling with pressed sleeves and continuous lifting body	Inspection Support	Visual inspection, dimension check, tag marking, proof test option and documentation support available
High Light:	endless wire rope sling 16mm x 3m , endless wire rope sling

Product Description

Endless Wire Rope Sling 16mm x 3m WLL 5.2T Choker / 13.2T Basket | LKS

LKS manufactures Endless Wire Rope Sling 16mm x 3m WLL 5.2T Choker / 13.2T Basket for industrial buyers who need a compact continuous-loop lifting sling with clear working load limits for choker hitch, basket hitch and general load handling applications.

The LKS Endless Wire Rope Sling 16mm x 3m WLL 5.2T Choker / 13.2T Basket is a specific endless loop sling made from 16mm steel wire rope. The 3m nominal length refers to the circumference length measured around the centerline of the endless loop, not a single straight leg length.

Unlike an eye-and-eye sling, an endless wire rope sling has a continuous loop body. This structure allows the contact and wear points to be rotated during use, helping buyers extend service life in suitable lifting conditions. For this product, the key rated load values are WLL 5.2T in choker hitch and WLL 13.2T in basket hitch, with 6.6T reference straight use.

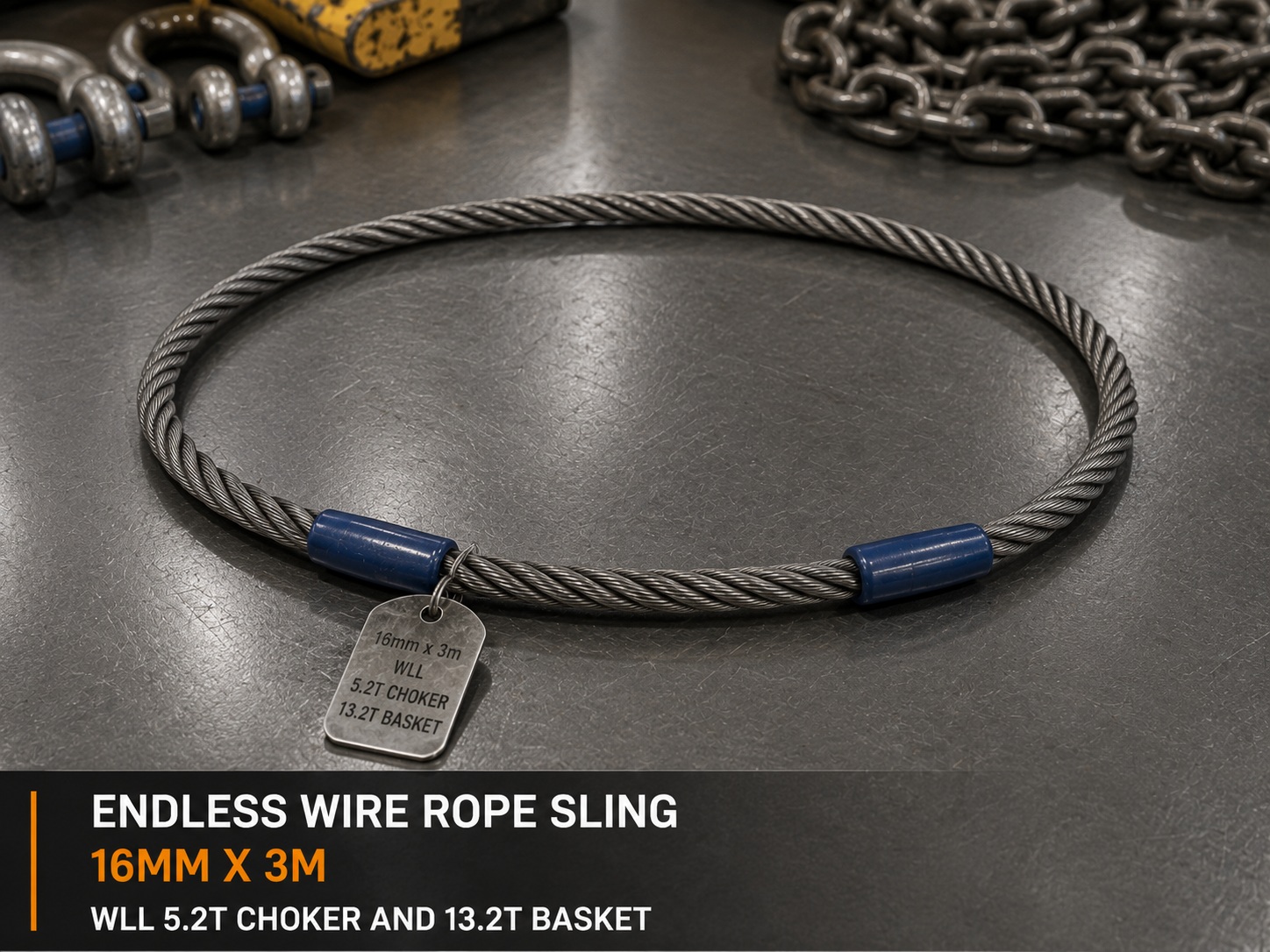

Endless wire rope sling 16mm x 3m WLL 5.2T choker and 13.2T basket with pressed sleeves metal tag and loop body

Load Rating Note: The WLL values on this page are based on a 16mm 6x36 IWRC 1960 N/mm² endless wire rope sling. Final tag marking, proof test requirement and certificate details should follow the confirmed order specification and inspection documents.

Rated Load, Hitch Method and Breaking Load Reference

The rated capacity of an endless wire rope sling changes according to the hitch method. A straight reference lift, choker hitch and basket hitch do not have the same working load limit. For procurement teams, this means the inquiry should not only mention rope diameter and length, but also the intended lifting method and load contact condition.

Load Parameter	Value for This Product	Technical Meaning
Single-Leg Reference WLL	3.3T	Reference WLL for one 16mm 6x36 IWRC 1960 N/mm² steel wire rope sling leg
Endless Straight Reference WLL	6.6T	Reference direct-use value for endless loop configuration
Endless Choker Hitch WLL	5.2T	Reduced WLL when the sling is used in a choker or laced lifting method
Endless Basket Hitch WLL	13.2T	Higher WLL when the endless sling supports the load in a basket / U-lift arrangement
Reference Rope Minimum Breaking Force	Approx. 18.3T / 179.8kN	Calculated from single-leg WLL 3.3T, termination factor 0.9 and safety factor 5; actual MBL should follow test certificate
Safety Factor	5:1 reference	Common safety coefficient used for steel wire rope sling rating and specification

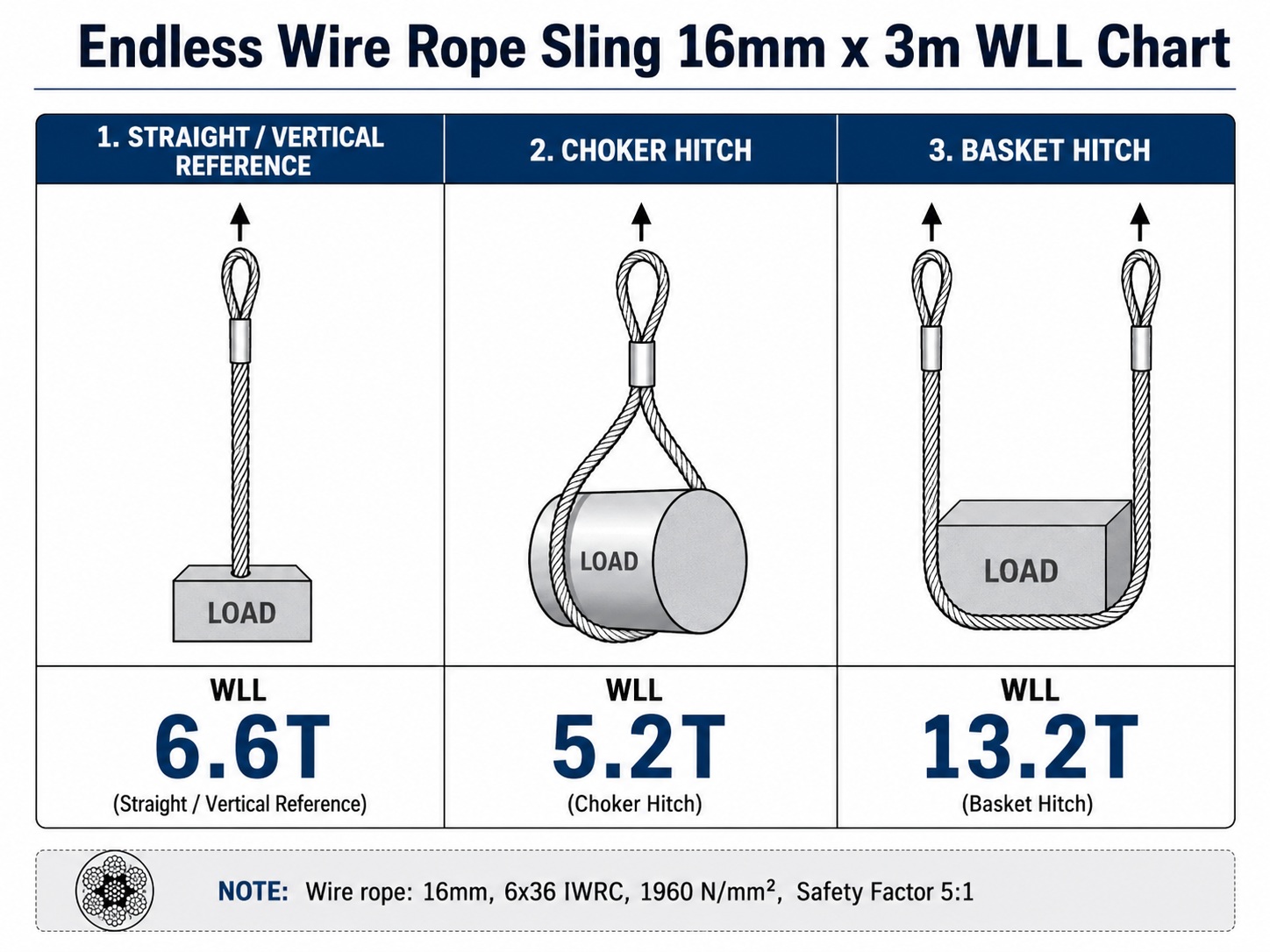

Endless wire rope sling 16mm x 3m WLL chart for 5.2T choker and 13.2T basket hitch

Product Structure: 16mm Continuous Loop, Pressed Sleeves and Metal Tag

This endless wire rope sling is built as a continuous lifting loop. The rope body forms a closed ring, and the secured area is finished with pressed sleeves or a suitable splice structure according to the production specification. A metal tag can be attached to show size, WLL, sling type, batch number and buyer-required marking.

Product Part	Specification	Function for Buyers
Wire Rope Diameter	16mm steel wire rope	Provides the main load-bearing sling body
Nominal Loop Length	3m circumference length	Measured around the centerline of the endless loop
Structure Type	Endless loop / continuous wire rope sling	Allows rotation of contact points and flexible lifting arrangement
Secured Area	Pressed sleeves or splice area	Forms the closed loop structure according to production requirement
Identification	Metal tag with WLL, size, hitch rating, batch or buyer-required marking	Supports warehouse control, jobsite identification and repeat orders

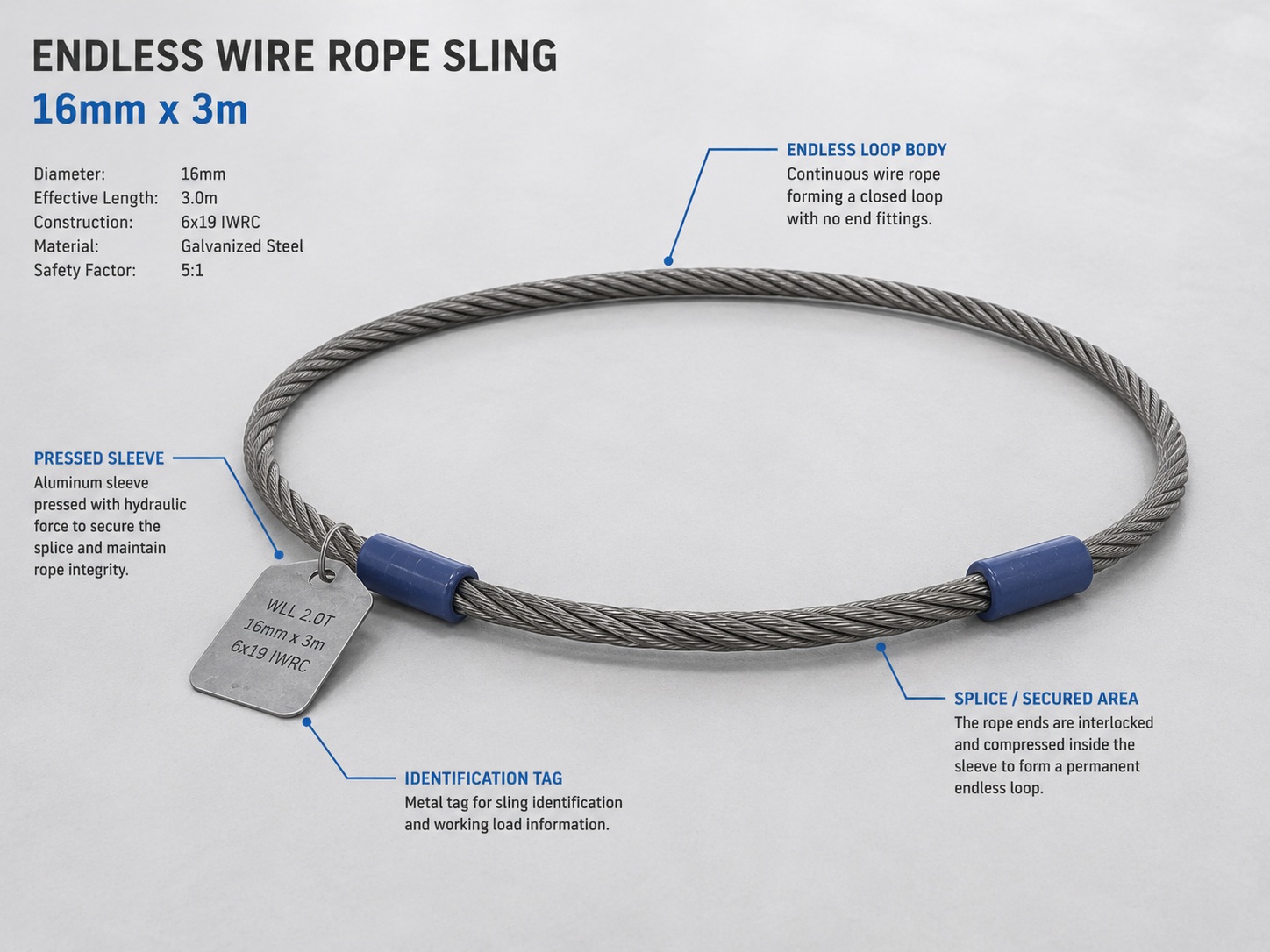

Endless wire rope sling 16mm x 3m structure with continuous loop pressed sleeves splice area and metal tag

Technical Parameters for Endless Wire Rope Sling 16mm x 3m

The following technical parameters are prepared for buyers who need a clear product specification before quotation. LKS can manufacture this 16mm x 3m endless wire rope sling as a standard project configuration or adjust the rope diameter, loop length, surface finish, tag content, proof test and packing according to the buyer’s requirement.

Parameter	Standard Specification	Custom Option / Note
Product Name	Endless Wire Rope Sling 16mm x 3m WLL 5.2T / 13.2T	Custom endless wire rope sling available
Brand	LKS	OEM marking or buyer tag available on request
Wire Rope Diameter	16mm	Other diameters available according to lifting requirement
Nominal Circumference Length	3m	Measured along the centerline of the endless loop
Straight Reference WLL	6.6T	Reference direct-use rating for endless sling configuration
Choker Hitch WLL	5.2T	Reduced rating for choker / laced lifting method
Basket Hitch WLL	13.2T	Higher rating for U-lift / basket hitch application
Wire Rope Construction	6x36 IWRC 1960 N/mm²	6x19, 6x37, 8x36 or buyer-specified construction available
Surface Finish	Galvanized steel wire rope	Bright steel or stainless steel wire rope available
Standard Reference	EN 13414-1-oriented specification	Final compliance depends on confirmed order, testing and documentation

Why Endless Wire Rope Sling WLL Changes by Hitch Method

An endless wire rope sling can be used in different lifting arrangements, but each arrangement changes the working load limit. A choker hitch grips the load but reduces rated capacity because of bending and choking effect. A basket hitch can provide higher capacity because the load is supported by two parts of the sling, but the bearing point diameter and contact condition must still be checked carefully.

For procurement teams, this hitch-based rating helps avoid choosing an endless sling only by rope diameter. A correct inquiry should include load weight, lifting method, contact radius, bearing point diameter, D/d condition, required WLL marking, proof test request and packing method.

Buyer Requirement	How This Product Helps	Purchasing Value
Compact lifting loop	Continuous endless body without fixed eye ends	Useful for flexible rigging, machinery handling and load wrapping
Clear WLL by hitch	5.2T choker and 13.2T basket ratings are shown clearly	Helps buyers select more responsibly for real lifting conditions
Rotatable wear points	The load contact area can be shifted around the loop	Helps manage wear in suitable applications
Simple storage and handling	No bulky hook or master link required as standard	Easy to store, pack and ship for industrial buyers
Jobsite identification	Metal tag can show diameter, length, WLL, hitch method and batch	Supports receiving inspection and warehouse control

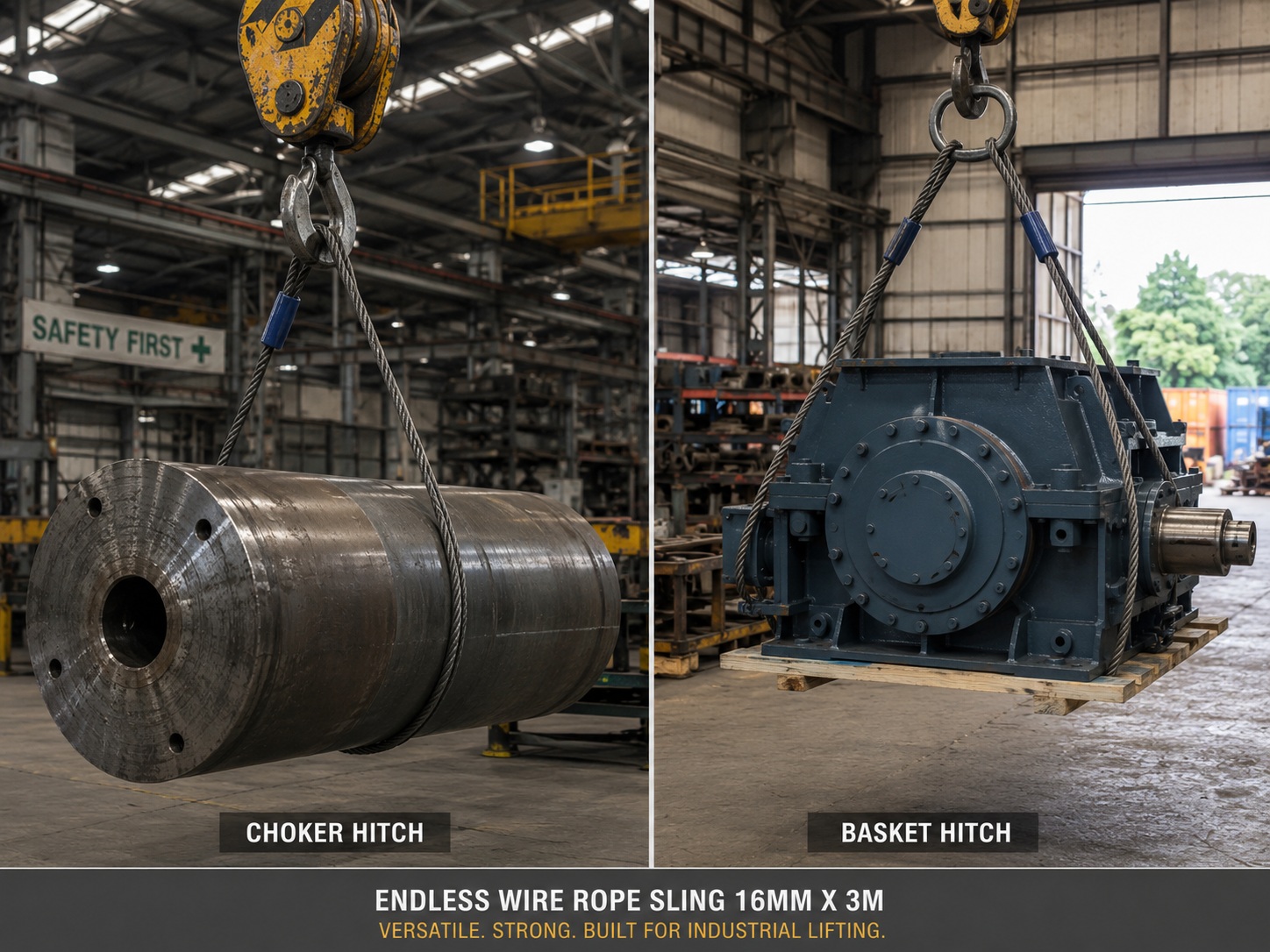

Endless wire rope sling 16mm x 3m used for choker hitch basket hitch and industrial lifting

Application Guide for Endless Wire Rope Sling 16mm x 3m

This specific endless wire rope sling configuration is suitable for many industrial lifting and rigging tasks where a continuous loop sling is preferred. Buyers can use the table below to match the product with common project scenarios.

Application Scenario	Typical Load	Why 16mm x 3m Endless Sling Works
Machinery Handling	Machine parts, motors, pumps, molds and compact industrial components	Continuous loop structure supports flexible load wrapping and compact handling
Steel Fabrication Work	Steel frames, plates, pipe sections and welded parts	Basket hitch option provides higher WLL when the load and bearing condition are suitable
Maintenance and Workshop Lifting	Repair parts, fixtures, tools and production equipment	3m loop length is practical for workshop rigging and repeated handling
Marine and Outdoor Use	Deck equipment, maintenance parts and marine service components	Galvanized rope and metal tag support practical working environments
Industrial Rigging Supply	Distributor stock, project supply and repeat lifting assemblies	Specific 16mm x 3m configuration is easy to quote, reorder and customize

Specification Reminder: For accurate quotation, buyers should confirm load weight, hitch method, contact radius, bearing point diameter, rope diameter, loop circumference length, WLL requirement, tag content and packing method.

Custom Options for Endless Wire Rope Sling 16mm x 3m

Although this page focuses on the 16mm x 3m specification, LKS can adjust the endless sling according to buyer drawings and project requirements. Buyers can change the wire rope diameter, loop circumference length, rope construction, surface finish, sleeve type, tag content and test requirement.

Custom Item	Available Options	Buyer Benefit
Rope Diameter	16mm standard on this page; other diameters available	Match different WLL, load weight and project standards
Loop Length	3m standard on this page; custom circumference length available	Fit different load sizes, wrapping methods and lifting heights
Rope Construction	6x36 IWRC, 6x37 IWRC, 6x19 IWRC or customized	Balance strength, flexibility and working environment requirements
Surface Finish	Galvanized, bright steel or stainless steel	Adapt to indoor, outdoor, marine or corrosion-related environments
Tag and Marking	Metal tag, batch number, WLL, hitch rating, serial number or buyer logo	Support inventory control, project files and distributor resale

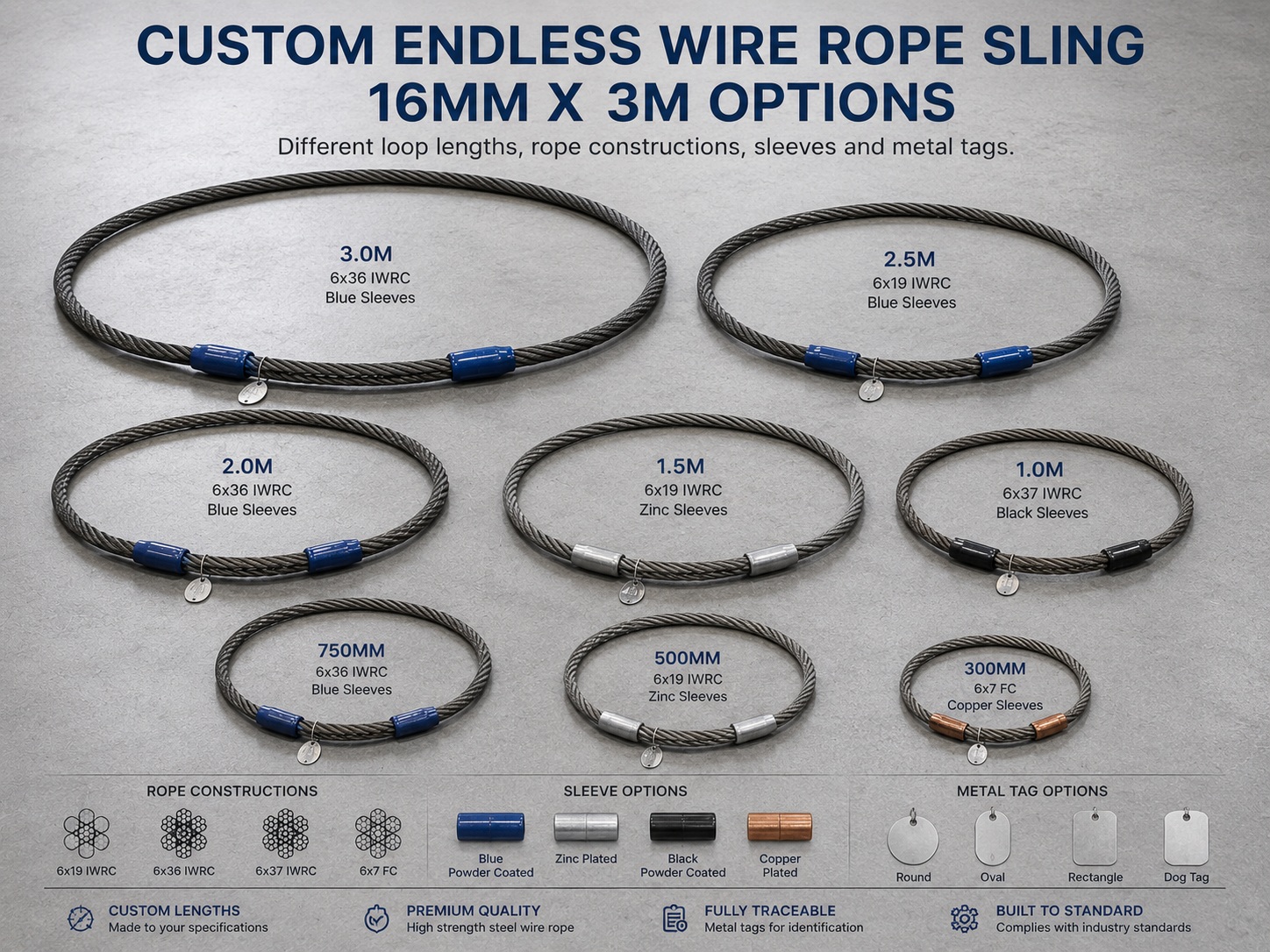

Custom endless wire rope sling 16mm x 3m options with different loop lengths rope constructions sleeves and metal tags

Quality, Inspection, Tagging and Export Packing

LKS understands that buyers of endless wire rope slings often need a product with clear identification, reliable dimension control and practical packing. Before shipment, the rope diameter, loop circumference, pressed sleeve area, sling appearance, WLL marking and tag information can be checked according to the confirmed order details.

Quality Item	Available Support	Buyer Benefit
Dimension Check	Check 16mm rope diameter and 3m loop circumference before packing	Helps buyers receive the correct product specification
Sleeve and Loop Check	Confirm pressed sleeve position, loop body and secured area	Reduces mismatch before jobsite use
Metal Tag	Size, batch number, WLL, hitch method, serial number or buyer-required marking	Supports jobsite identification and warehouse control
Proof Test Option	Proof test and test report can be discussed before production	Useful for project procurement and serious lifting buyers
Export Packing	Carton, pallet, wooden case, steel frame or custom packing	Protects endless sling assemblies during international shipment

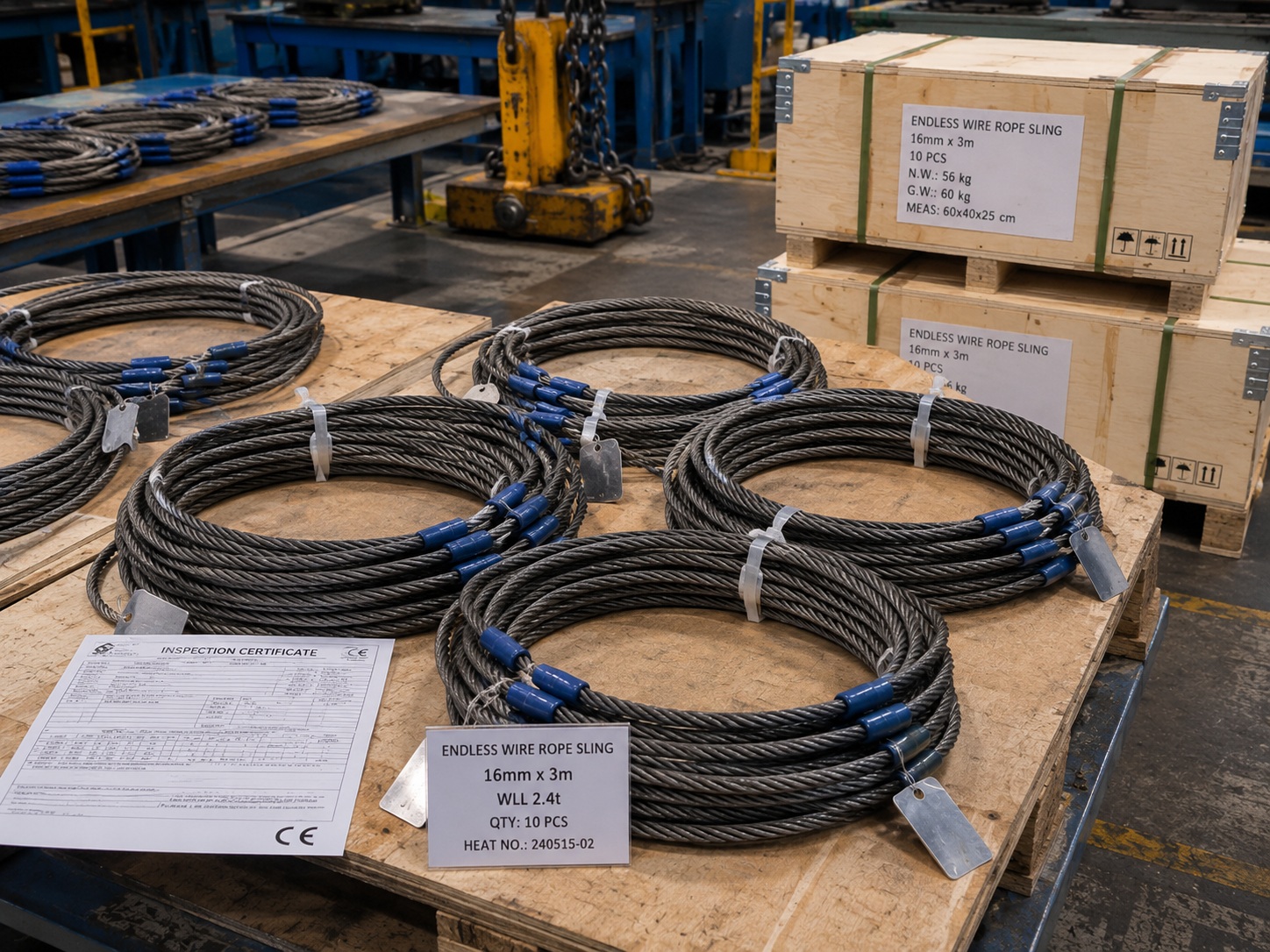

Endless wire rope sling 16mm x 3m production and packing with inspection documents metal tags pallets and wooden cases

How to Request a Quotation

For faster quotation, buyers can start with the standard product specification on this page: endless wire rope sling, 16mm rope diameter, 3m circumference length, WLL 5.2T in choker hitch and WLL 13.2T in basket hitch. If the lifting setup is different, send drawings, load photos, old sling tags or lifting method details to LKS for customization.

Inquiry Information	Recommended Details	Why It Helps
Product Specification	Endless wire rope sling, 16mm diameter, 3m loop circumference	Confirms the core product model quickly
Load and Hitch Method	Load weight, choker hitch, basket hitch, bearing point and contact radius	Helps confirm whether 5.2T, 6.6T or 13.2T rating applies
Material Requirement	Galvanized steel, bright steel, stainless steel or specified rope construction	Improves match with working environment
Tag and Test Need	Metal tag content, WLL marking, proof test request or inspection document	Supports project documentation and receiving inspection
Packing and Quantity	Sample order, batch order, carton, pallet, wooden case or export packing	Helps arrange production and shipping efficiently

Why Choose LKS Endless Wire Rope Sling 16mm x 3m?

LKS focuses on custom wire rope sling manufacturing for B2B lifting buyers. This Endless Wire Rope Sling 16mm x 3m gives buyers a clear starting specification with hitch-based WLL values, while still allowing customization for rope diameter, loop length, rope construction, surface finish, tag content, proof test and packing.

Specific 16mm x 3m Product Clear rope diameter, loop length and WLL values make quotation, comparison and repeat ordering easier.	Hitch-Based WLL Information 5.2T choker and 13.2T basket ratings help buyers understand capacity changes by lifting method.
Custom Loop Sling Support Rope diameter, loop length, surface finish, sleeve type and tag marking can be customized.	Inspection and Export Packing Inspection records, proof test options and export packing can be arranged for B2B orders.

Frequently Asked Questions

What is the WLL of this endless wire rope sling?

This 16mm x 3m endless wire rope sling has a reference WLL of 6.6T for straight use, 5.2T in choker hitch and 13.2T in basket hitch, based on the specified 16mm 6x36 IWRC 1960 N/mm² configuration.

What does 3m length mean for an endless wire rope sling?

For this product, 3m refers to the nominal circumference length measured along the centerline of the endless loop, not a straight single-leg length.

What is the reference breaking load of this product?

The reference rope minimum breaking force is approximately 18.3T / 179.8kN, calculated from single-leg reference WLL 3.3T, termination factor 0.9 and safety factor 5. Final breaking load and proof test information should follow the confirmed inspection document.

Can the 16mm x 3m specification be customized?

Yes. LKS can customize rope diameter, loop circumference length, wire rope construction, surface finish, sleeve type, metal tag, WLL marking and packing method according to buyer requirements.

What information is needed for a quotation?

Buyers should provide rope diameter, loop length, load weight, hitch method, bearing point diameter, working environment, required WLL, quantity, destination and any proof test or documentation needs.

Need Endless Wire Rope Sling 16mm x 3m WLL 5.2T / 13.2T?

Send your required quantity, load photo, hitch method, loop length, WLL requirement or proof test request to LKS.

Our team can quote this 16mm x 3m endless sling or customize another endless wire rope sling according to your working load and project requirements.
